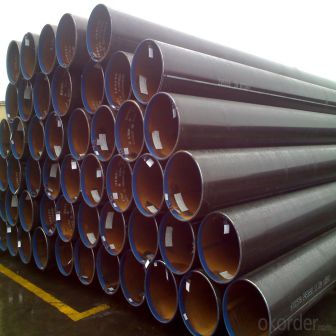

ASTM A333 Hot Rolled Seamless Boiler Tube, 1/8-48 Inch

ASTM A333 Hot Rolled Seamless Boiler Tube, 1/8-48 Inch

Key Specifications / Features

Model No.: Hits: 2

ASTM A333 Hot Rolled Boiler Tube Provider: Hot Rolled Seamless Boiler Tube, OD 1/8-48 Inch, 25-457mm, WT 3-60mm, SCH5S-SCH160, STD, XS, XXS, Length 2-12m.

Request a quote

Detail Information

Product name: Hot Rolled Seamless Boiler Tube Seamless Carbon Steel Boiler Pipes, ASTM A333 Low temperature Pipe.
Low-temperature tube ASTM A333 is suitable for -45℃-195℃ low temperature pressure vessel pipe and seamless steel pipe for low temperature heat exchanger pipe.

Standards: ASTM A333 Grade 1, Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10, Grade 11, ASME SA106, ASME SA192M, ASME SA209M, ASME SA210M, ASTM A106M, ASTE A192M, EN 10216-2, DIN 17175, JIS G3456, JIS G3461, JIS G3462, GB 5310, GB 3087, DIN 17440, DIN 2448, JIS G3452-54.
Grades: SA106B, SA192, SA210A1, SA106C, SA210C, SA209T1, SA213 T11.
Materials: Carbon steel, Mo Steel, Cr-Mo Steel, Cr-Mo-W Steel.
Outer diameter: 1/8-48 Inch, 25 - 457mm.
Thickness: 3 - 60mm, SCH5S-SCH160, STD, XS, XXS.
Length: 5.8m 6m fixed, 12m fixed, 2-12m random or as required.
Section shape: round.
Certifications: DIN 1629, EN 10210-1.
Technique: Hot Rolled.
Surface treatment: black painted, PE-coated, galvanized
Special pipe: thick wall pipe.
Temperature range -45℃-195℃.

Tests we apply to the tubes:
1. Chemical composition analysis.
2. Mechanical properties (tensile strength, yield strength, elongation, hardness).
3. Technological test (flattening test, flaring test, bending test, hydraulic pressure test).
4. Surface quality detection.
5. Eddy-current examination.
6. Visual test.

Applications:
1. Low and middle pressure fluid transportation pipeline.
2. Casing pipe.
3. Low and medium pressure boiler seamless steel pipe.
4. High pressure boiler seamless steel pipe.
5. Carbon seamless steel pipe for ship.
6. Seamless steel pipe used in high pressure chemical fertilizer equipment.
7. Petroleum and natural gas industry.
8. Steel pipe for heat exchanger.
9. Used for diesel engine.
10. Chemical industry, building industry, environment industry and more.

Delivery condition: hot rolled, annealed, normalized, quenched and tempered.

Packaging:
1. Bundle packing.
2. Beveled end or plain end or varnished as per buyer's requirement.
3. Marking: as per customer's requests.
4. Painting varnish coating on the pipe.
5. Plastic caps at ends.
